Combined Vertical Freezers

Combigel 8 / 8A

COMBINED PROFESSIONAL MACHINES
2 CYLINDERS

Loading...

Combigel 8 / 8A

COMBINED PROFESSIONAL MACHINES
2 CYLINDERS

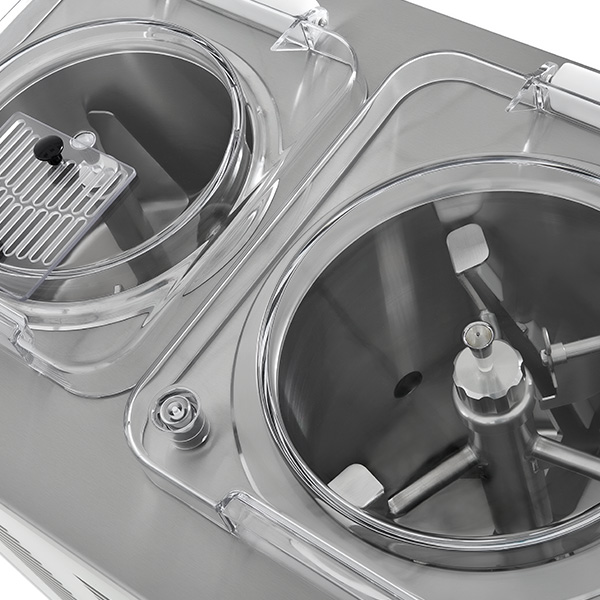

The models of the Professional Series, “a whole laboratory in a single machine”. The two vertical cylinders allow the simultaneous and consecutive use of the hot and the cold cycle
Banda sfondo rosso  macchine multisettoriali

Features

  • caratteristiche.item_01_alt The cylinder is vertical with important advantages: easy filling, constant visibility of the product and addition at any time of liquid, powder and solid ingredients.
  • caratteristiche.item_02_alt Fitted with separate heating and cooling for production in sequence.
  • caratteristiche.item_03_alt Ideal for making gelato with specific recipe such as chocolate: white, milk, sweet, dark, bitter, etc.
Banda sfondo rosso  macchine multisettoriali

Main functions

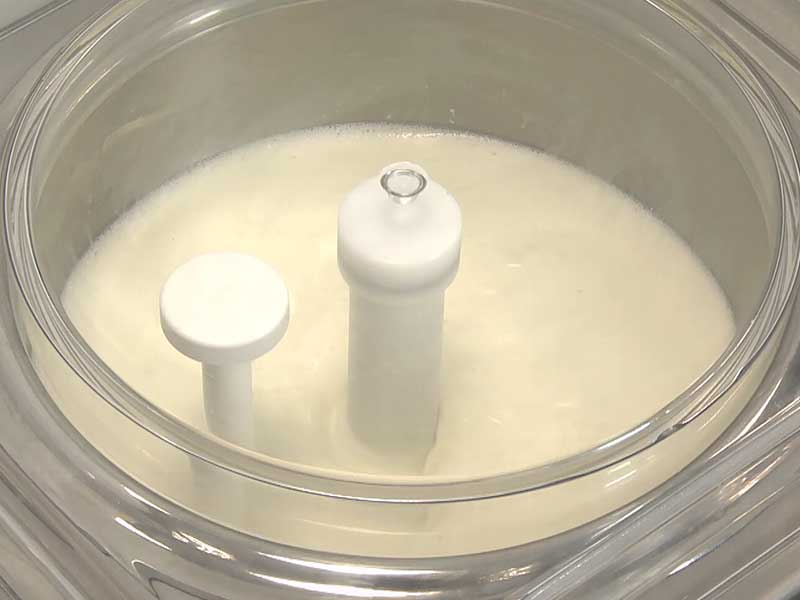

Combigel Telme - Professional combined machines hot and cold for gelato and pastry  - Mix

Mixing and blendingof ingredients: milk, cream, milk powder, sugar, dextrose, eggs emulsifiers, stabilizers, etc.; necessary for the preparation of gelato, sorbetto and slush.

Combigel Telme - Professional combined machines hot and cold for gelato and pastry  - Mixing and freezing

Heating and sanitizing: melts sugars, melts fats & chocolate, hydratates stabilizing agents and solid parts, emulsifies fats with water and eliminates the most of pathogenic bacterial flora.

Combigel Telme - Professional combined machines hot and cold for gelato and pastry - Heat, sanitize

Cooling and finalizes pasteurization. Thermoshock system (M.O.P.) to process hot mixes.

Combigel Telme - Professional combined machines hot and cold for gelato and pastry - Raffreddano

Freezing the liquid mix and incorporating air into the product.The smooth mechanical and thermal treatment produces a fine and creamy ice cream or gelato.

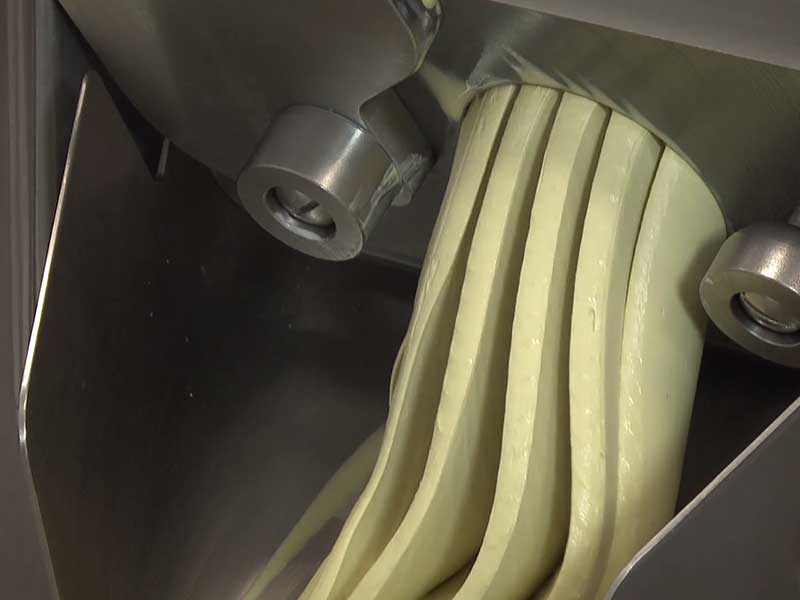

Combigel Telme - Professional combined machines hot and cold for gelato and pastry  - Rapid discharge

Rapid and complete discharge of gelato ready to be served.

Combigel Telme - Professional combined machines hot and cold for gelato and pastry - Conservation

Conservation at the end of the cycle to help the operator.

Combigel Telme - Professional combined machines hot and cold for gelato and pastry - Self-diagnosis

Self-diagnosis to help the technical assistance.

Type of use

Gelato & Ice cream

  • Pasteurizing
  • Gelato
  • Sorbetto
  • Icecream (own production)
  • Slush

Functional data: factory settings

  • Heating program:
    Adjustment range +65°C ÷ +90°C – Factory setting +85°C
  • Freezing program:
    Adjustment range-12°C ÷ +6°C – Factory setting -9°C
Banda sfondo rosso  macchine multisettoriali

Technical Data

Model MIX FOR CYCLE DIMENSIONS COOLING V / Hz / Ph A kW PRODUCTION
COMBIGEL 8 4,5÷9 kg 53x77x115 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
19 A
30 A
10 kW 35÷60 L / h
COMBIGEL 8 A 4,5÷9 kg 53x97x115 cm air 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
21 A
31 A
10,5 kW 35÷60 L / h
