Vertical Batch Freezers

Pratica 35-50
Pratica 42-60
Pratica 54-84

VERTICAL BATCH FREEZERS

Loading...

Pratica 35-50
Pratica 42-60
Pratica 54-84

VERTICAL BATCH FREEZERS

of the Professional Series are sturdy, easy to use, with stainless steel “scotch brite” front panel. They are reliable, user-friendly and offered at competitive prices. .
Banda sfondo rosso  macchine multisettoriali

Features

  • caratteristiche.item_01_alt Intuitive and simple controls. Reliable refrigeration system..
  • caratteristiche.item_02_alt Time controlled cycle to give the ideal gelato texture and consistency.
  • caratteristiche.item_03_alt The temperature cycle always achieves the same result with different quantities of processed mix.

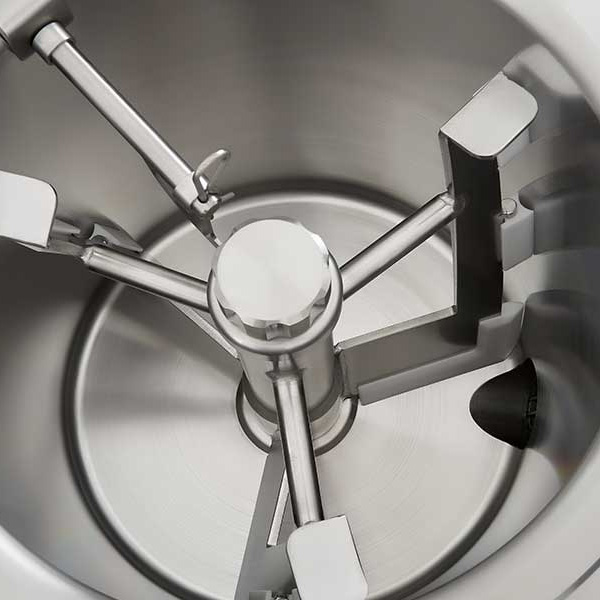

  • caratteristiche.item_04_alt Removable scraper elements to make the best use of all the power of the compressors, thanks to the effective action of the scraper elements pushed against the cylinder by the mass of gelato.

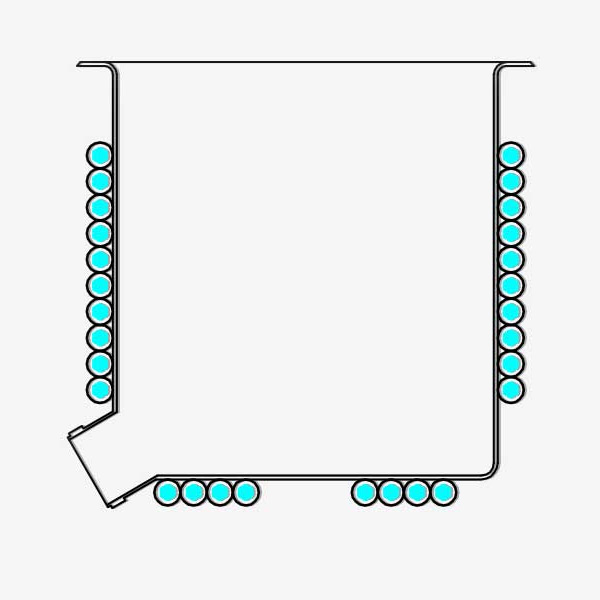

  • caratteristiche.item_05_alt Vertical evaporator cylinders for a better transfer of refrigeration through cylinder wall and bottom.
  • caratteristiche.item_06_alt Easy filling and simple adding of ingredients. Dispensing device with protection grid conforming to standards.

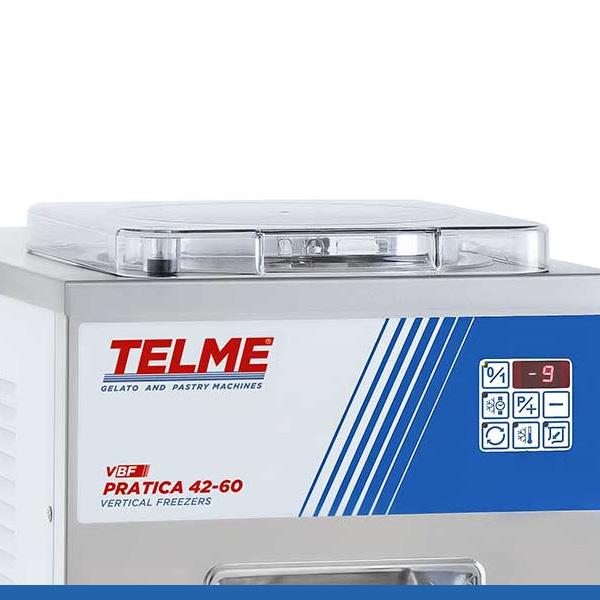

  • caratteristiche.item_07_alt Transparent lid to view all the process.
  • caratteristiche.item_08_alt Unbeatable quality/price ratio compared to machines with similar capacities.
  • caratteristiche.item_09_alt Average overrun of 25-30% according to taste, a product of traditional structure and well-defined flavor.
Banda sfondo rosso  macchine multisettoriali

Main functions

Professional vertical batch freezers for gelato and sorbetto Pratica by Telme  - Variable quantity

Variable quantity for optimum use according to the requirements of the operator.

Professional vertical batch freezers for gelato and sorbetto Pratica by Telme - Raffredda e conserva

Mixing and freezing the liquid mix and incorporating air in the product.The mechanical and thermal treatment produce fine, creamy gelato.

Professional vertical batch freezers for gelato and sorbetto Pratica by Telme - Scaricano rapidamente.

At the end of the cycle,quick dispensing of gelato ready to be consumed immediately.

Professional vertical batch freezers for gelato and sorbetto Pratica by Telme  - Gruppo di lavaggio

Optional washing unit sanitizes and guarantees maximum hygiene.

Professional vertical batch freezers for gelato and sorbetto Pratica by Telme  - Self-diagnosis

Self-diagnosis to help the technical assistance.

Type of use and products

The batch freezers are the indispensable machines for the businesses that prepare and serve ice cream. The processed products are:

  • Gelato
  • Sorbetto
  • Icecream (own production)
  • Slush

Functional data: factory settings

  • Time controlled cycle: 12 minutes
  • Temperature cycle: - 9° C
  • Buzzer: 10 seconds
  • Granita program: Suggested regulation - beater 20 seconds ON and beater 20 seconds OFF, to obtain the desired dimension of the ice crystals
Banda sfondo rosso  macchine multisettoriali

Technical Data

Model MIX FOR CYCLE DIMENSIONS COOLING V / Hz / Ph A kW PRODUCTION
PRATICA 35-50
three-phase
3,5÷8 Kg 49x70x112 cm water / air 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
8 A
14 A
3,5 kW 50 L / h
PRATICA 35-50
single-phase
3,5÷8 Kg 49x70x112 cm water / air 230 V / 50 Hz / 1 Ph
220 V / 60 Hz / 1 Ph
22 A
23 A
3,5 kW 50 L / h
PRATICA 42-60 4,5÷9 Kg 49x70x112 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
15 A
22 A
6,7 kW 60 L / h
PRATICA 42-60 A 4,5÷9 Kg 49x95x112 cm air 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
16 A
23 A
7 kW 60 L / h
PRATICA 54-84 8÷13 Kg 49x70x115 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
21 A
29 A
7,5 kW 75 L / h
