Vertical Batch Freezers

Ecogel T 30-90
Ecogel T 40-120
Ecogel T 50-160
Ecogel T 60-200

batch freezers Top Level Series VBF for great production performance
not surpassed by other machines

Loading...

Ecogel T 30-90
Ecogel T 40-120
Ecogel T 50-160
Ecogel T 60-200

batch freezers Top Level Series VBF for great production performance
not surpassed by other machines

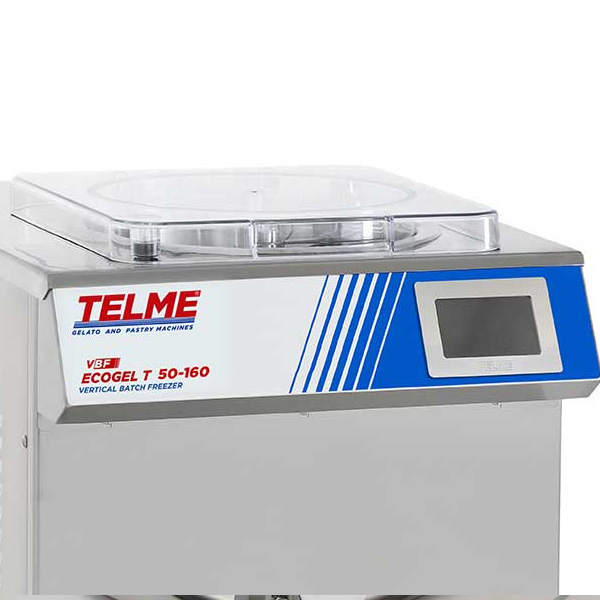

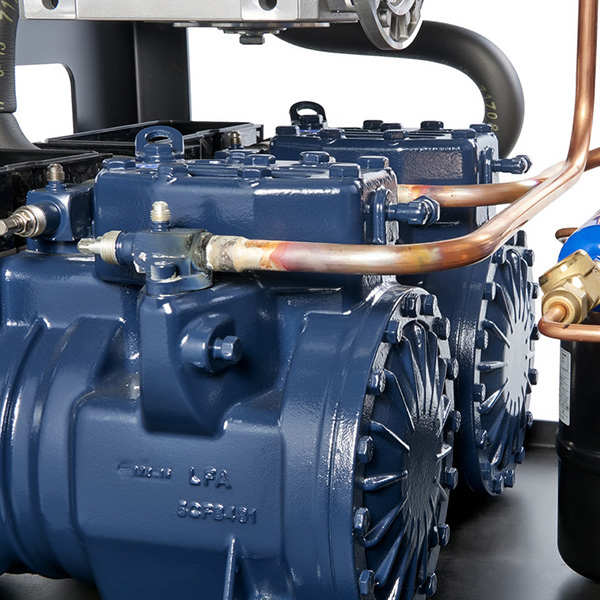

The batch freezers of the Top Level Series, offer superior performance to satisfy the most professional customers . With two parallel refrigeration systems, they can operate one or both of the compressors and it is possible to freeze and produce really fast or to get more than 40% energy saving. Inverter for varying the speed of the beater motor.
Banda sfondo rosso  macchine multisettoriali

Features

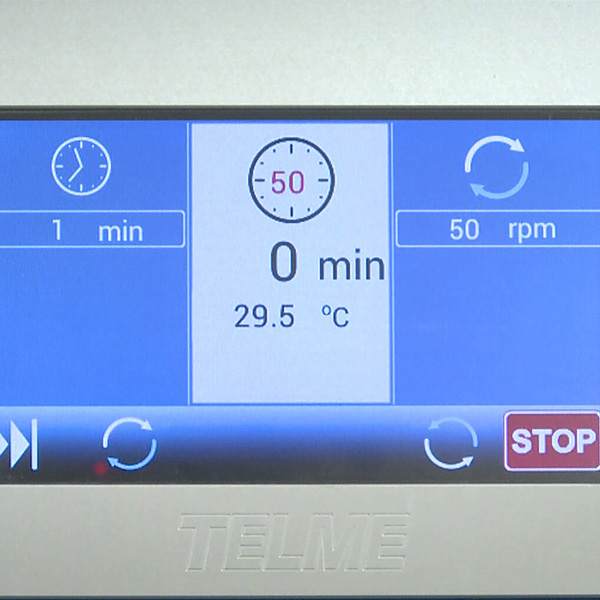

  • caratteristiche.item_01_alt All models are equipped with: resistive 5 inch colour Touch Screen, an intuitive easy to use interface.
  • caratteristiche.item_02_alt Inverter for varying the speed of the beater motor.
  • caratteristiche.item_03_alt Reduces by 20% the nominal power used. Therefore it is possible to freeze and produce really fast or to get more than 40% energy saving

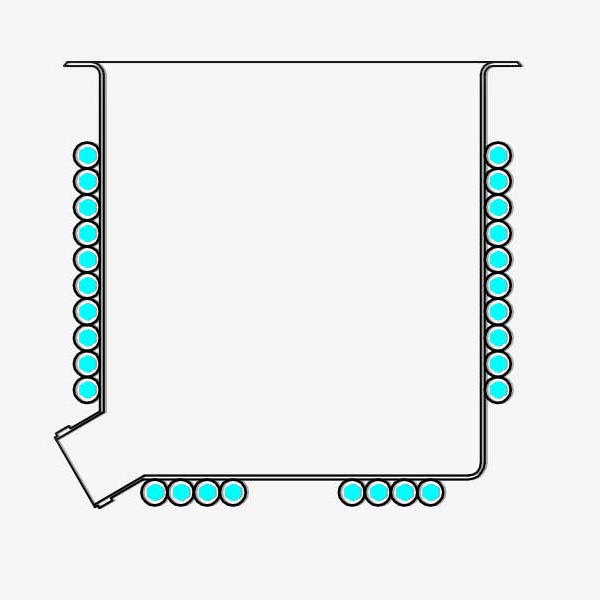

  • caratteristiche.item_04_alt Vertical evaporator cylinders (for a better transfer of refrigeration through cylinder wall and bottom).

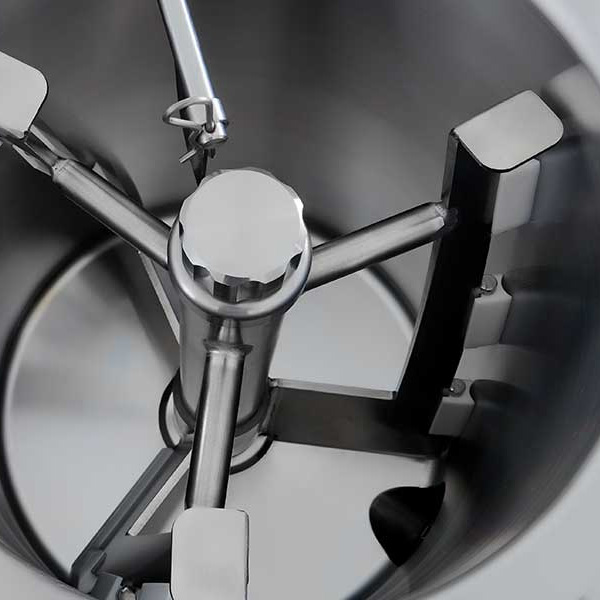

  • caratteristiche.item_05_alt Removable scraper elements (to make the best use of all the power of the compressors, thanks to the effective action of the scraper elements pushed against the cylinder by the mass of gelato).

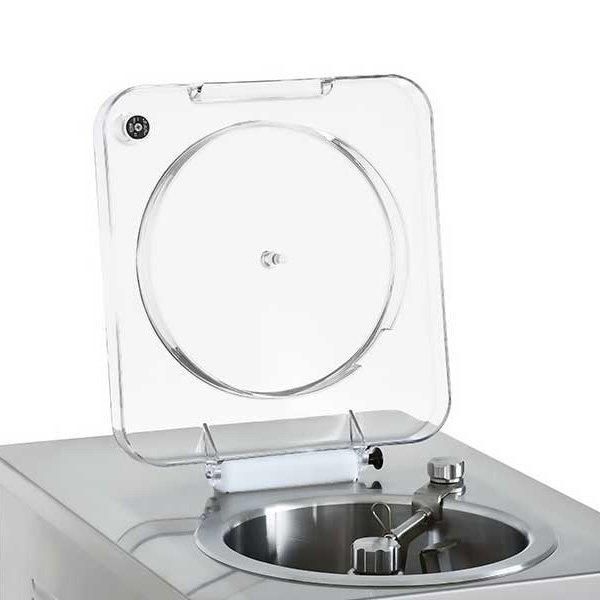

  • caratteristiche.item_06_alt Transparent lid (allowing a perfect view of all steps of the freezing process.).
  • caratteristiche.item_07_alt Easy filling and simple adding of ingredients.
  • caratteristiche.item_08_alt Unbeatable quality/price ratio compared to machines with similar power.
    Dispensing device with protection grid conforming to standards.
Banda sfondo rosso  macchine multisettoriali

Main functions

Professional vertical batch freezers with touch screen Telme Ecogel T  - Flexibility and variable quantity

Flexibility and variable quantity (for optimal use accoding to the needs).

Professional vertical batch freezers with touch screen Telme Ecogel T  - Time controlled cycle

Time controlled cycle (to get the ideal gelato texture and consistency).

Professional vertical batch freezers with touch screen Telme Ecogel T - Temperature-controlled cycle

Temperature-controlled cycle always achievies the same result with different quantities (for the best possible gelato conservation).

Professional vertical batch freezers with touch screen Telme Ecogel T - 25-30% average overrun

25-30% average overrun and a product with traditional structure and well-defined flavour

Professional vertical batch freezers with touch screen Telme Ecogel T - Rapid and complete discharge.

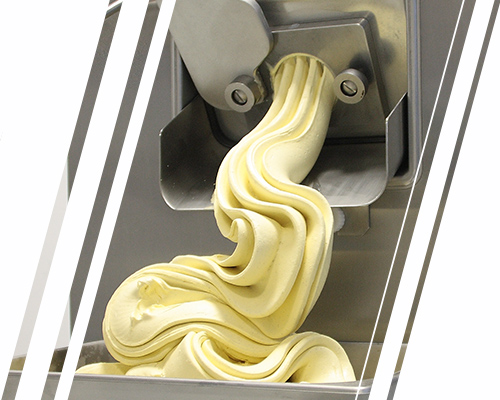

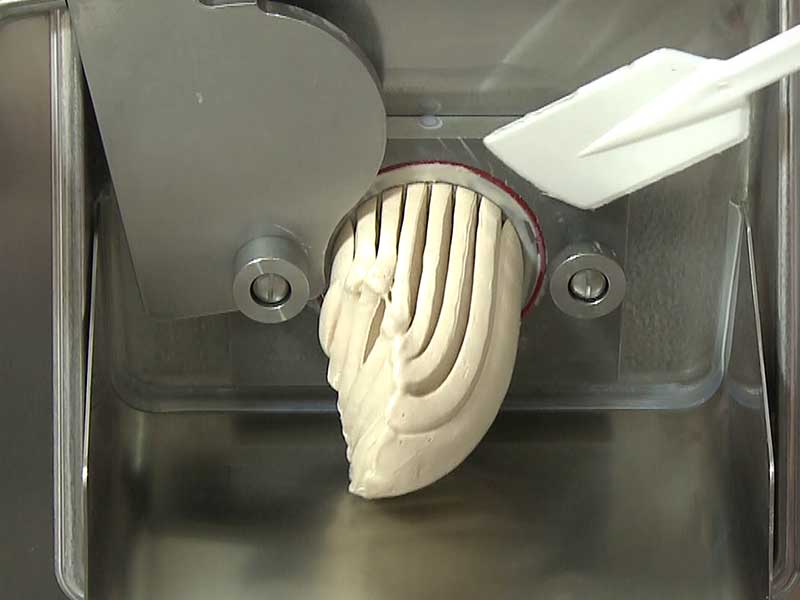

Rapid and complete discharge of ready-to-sell product.

Professional vertical batch freezers with touch screen Telme Ecogel T - The washing unit

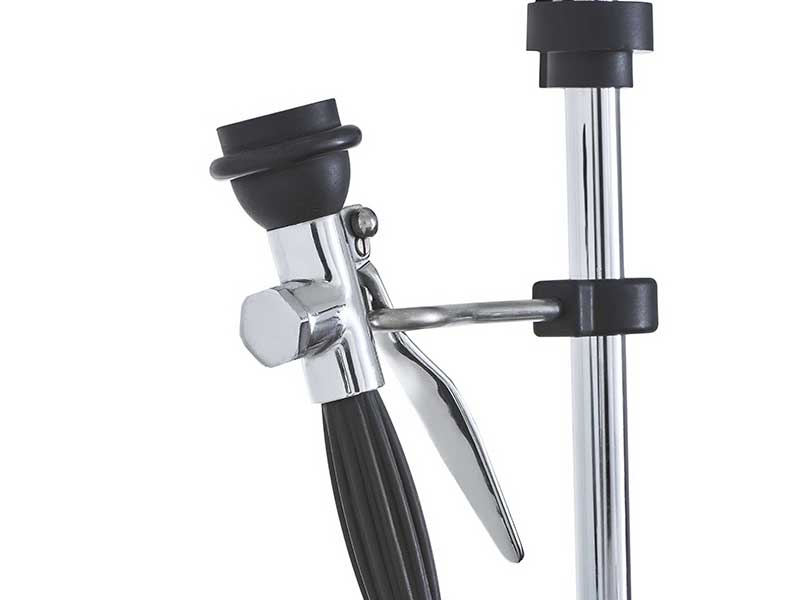

Optional washing unit to sanitize and guarantee maximum hygiene.

Professional vertical batch freezers with touch screen Telme Ecogel T  - Self-diagnosis

Self-diagnosis for technical assistance and correct maintenance.

Programmes

  • 15 temperature programmes for traditional gelato
  • 3 “High Overrun” programmes
  • 3 “Low Overrun” programmes
  • 3 time programmes
  • 1 fruit or mint granita programme;
  • 1 coffee granita programme
  • free programmes to be set

Type of use and products

The batch freezers are the indispensable machines for the businesses that prepare and serve ice cream. The processed products are:

  • Gelato
  • Sorbetto
  • Icecream (own production)
  • Slush
Banda sfondo rosso  macchine multisettoriali

Technical Data

Model MIX FOR CYCLE DIMENSIONS COOLING V / Hz / Ph A kW PRODUCTION
ECOGEL T 30-90 4,5÷13 kg 51x70x115 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
22 A
30 A
8,5 kW 90 L / h
ECOGEL T 40-120 6÷20 kg 60x78x125 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
27 A
46 A
14,5 kW 120 L / h
ECOGEL T 50-160 9÷27 kg 62x85x125 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
32 A
51 A
16,2 kW 160 L / h
ECOGEL T 60-200 16÷34 kg 62x85x125 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
32 A
51 A
16,2 kW 200 L / h
