Automatic Batch Pasteurizers

Ecomix T 60 / 60 A
Ecomix T 120
Ecomix T 200

Professional batch pasteurizers
to satisfy the most professional customers

Loading...

Ecomix T 60 / 60 A
Ecomix T 120
Ecomix T 200

Professional batch pasteurizers
to satisfy the most professional customers

The models of the Top Level Series allow:
  • improved performance of flavouring
  • hydration of the stabilizing agents and solid parts
  • solubilization of sugars
  • melting and uniform suspension of fats in the mix
  • a more stable emulsion.
Banda sfondo rosso  macchine multisettoriali

Features

  • caratteristiche.item_01_alt Provide indirect heating by a food safe heat-conducting liquid to protect the organoleptic properties of the ingredients.

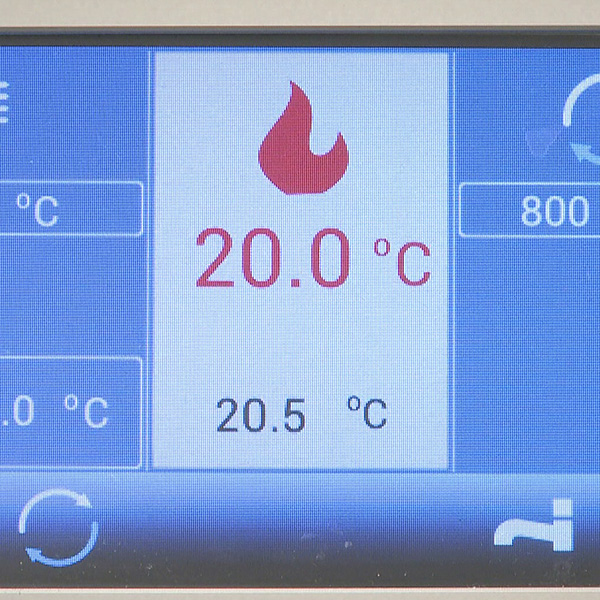

  • caratteristiche.item_02_alt Resistive 5 inch colour Touch Screen (can be used with gloves too), an intuitive, easy to use interface.
  • caratteristiche.item_03_alt Inverter for varying the speed of the beater motor.

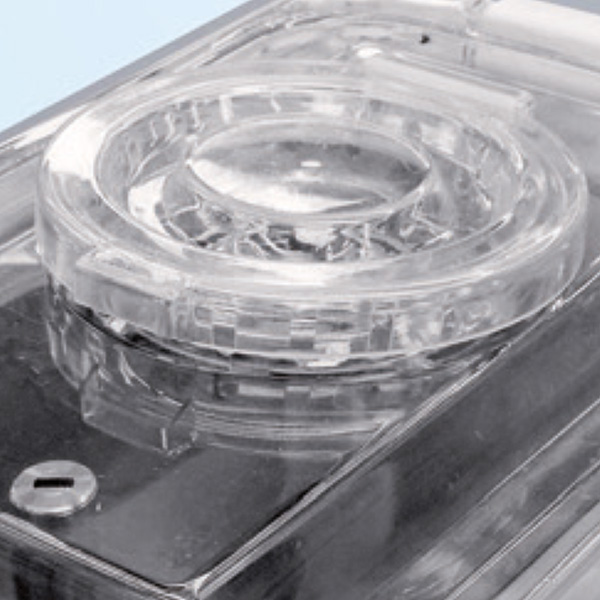

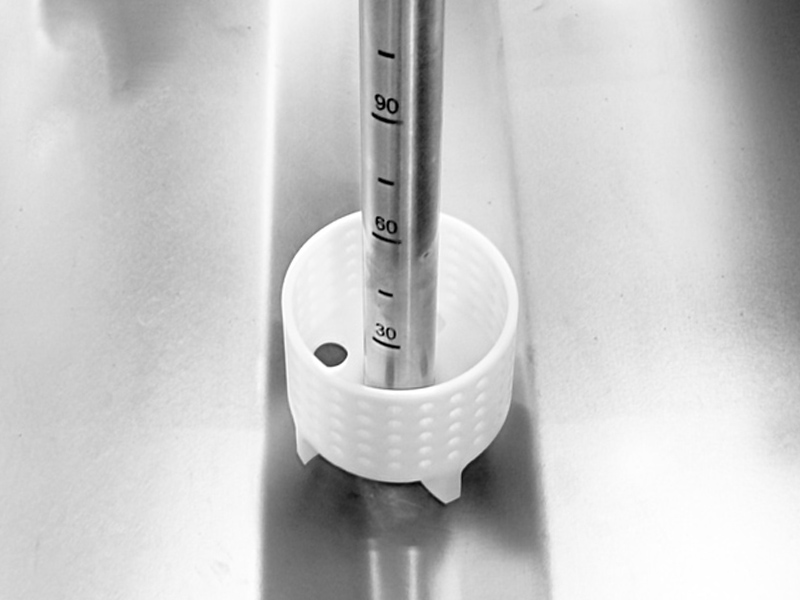

  • caratteristiche.item_04_alt Double lid to add ingredients without stopping the mixing. Emulsifying beater, with graduated shaft, indicating the litres.
  • caratteristiche.item_05_alt 14 preset programs and free programmes to be set.
    Smart memory to repeat , if necessary, the pasteurizing cycle when power supply is interrupted.

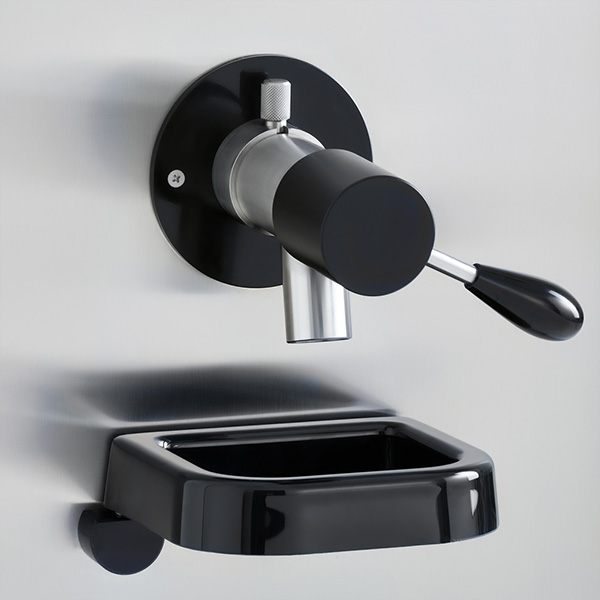

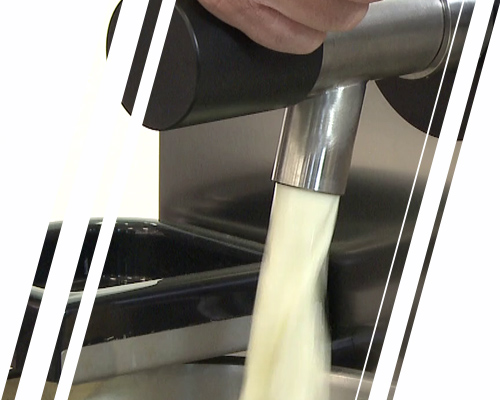

  • caratteristiche.item_06_alt Dispensing tap with built-in washing, shared by all TELME Pasteurizers, for perfect hygiene after each dispensing at the end of the operation.

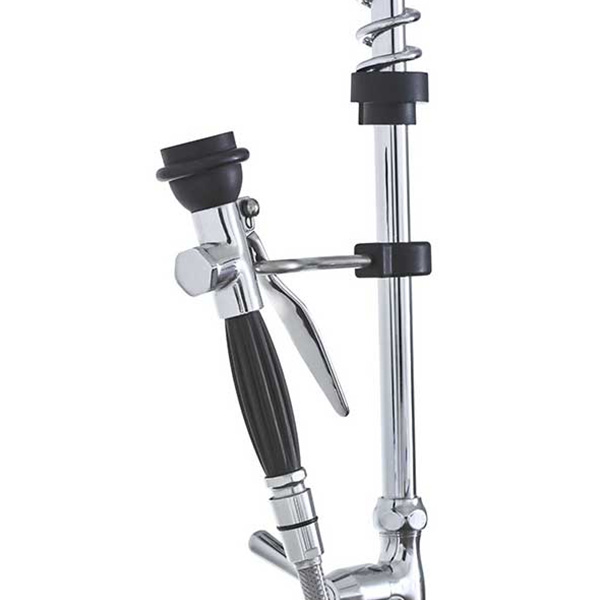

  • caratteristiche.item_07_alt Optional washing unit allows various types of uses: guides the water jet and establishes the correct flow; cleans more than one machine at a time; mixes hot and cold water.
Banda sfondo rosso  macchine multisettoriali

Main functions

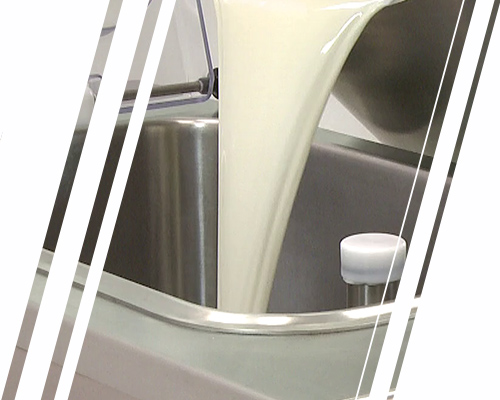

Automatic batch pasteurizers for gelato and sorbetto mixes Ecomix T Telme - Mescola e miscela

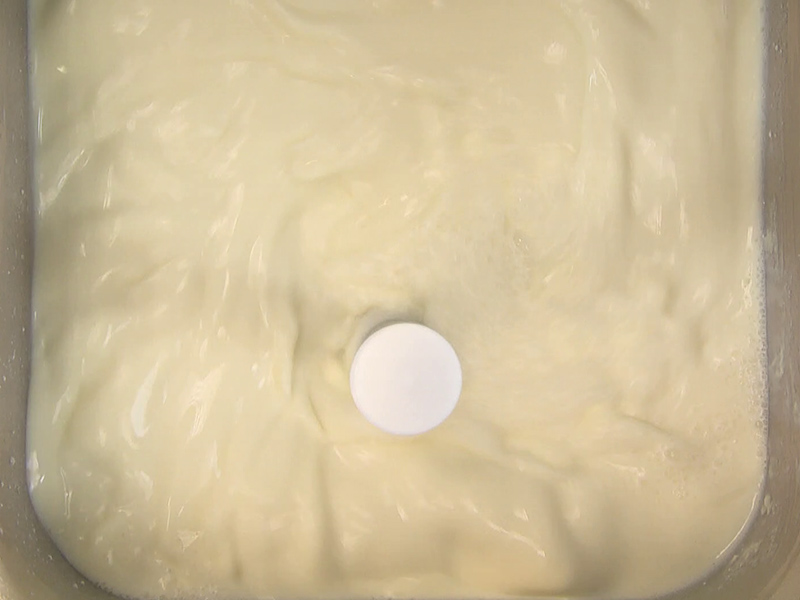

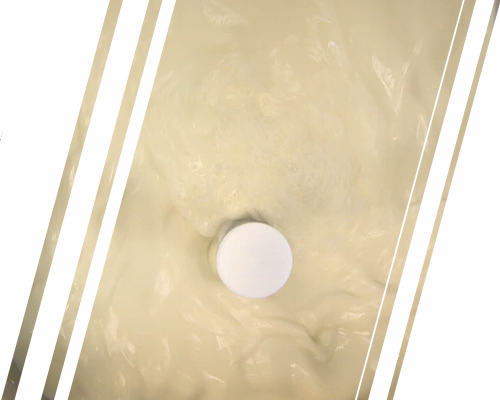

Mix and blend ingredients: milk, cream, powdered milk, sugar, dextrose, eggs, emulsifying agents, stabilizers, etc. to create homogeneous mixes and a more stable emulsion.

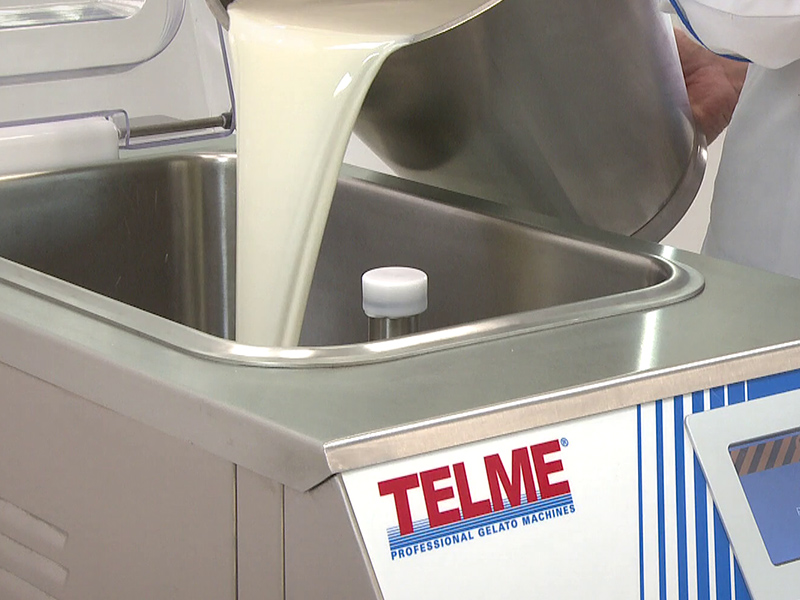

Automatic batch pasteurizers for gelato and sorbetto mixes Ecomix T Telme Gelato - Heat and sanitize

Heat and sanitize by melting fats, chocolate and eliminating pathogenic bacteria.
Improved performance of flavouring. Hydration of the stabilizing agents and solid parts. Solubilization of sugars and uniform suspension of fats in the mix.

Automatic batch pasteurizers for gelato and sorbetto mixes Ecomix T Telme- Cool and conserve

Cool and preserve by completing the pasteurizing, preventing the growth of residual bacteria and keeping the mix at the best temperature in compliance with the relevant regulations.

Automatic batch pasteurizers for gelato and sorbetto mixes Ecomix T Telme- recording of the cycle and of the temperatures.

Optional recording of the cycle and of the temperatures.

Type of use

  • Pasteurize raw milk / preserve pasteurized milk
  • Pasteurize gelato or ice cream mix with improved performance of flavouring
  • Hot-processing of syrups for sorbetto

Programmes

  • 2 high pasteurization
  • 2 low pasteurization
  • 2 milk pasteurization
  • 2 chocolate pasteurization
  • 2 fruit syrup preparation
  • 2 cooling and ageing
  • 1 inverted sugar
  • 1 liquid yogurt
  • series of free programmes to be set
Banda sfondo rosso  macchine multisettoriali

Technical Data

Model MIX FOR CYCLE DIMENSIONS COOLING V / Hz / Ph A kW PRODUCTION
ECOMIX T 60 30÷60 L 42x78x110 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
12 A
20 A
7,6 kW 60 L / Cycle
ECOMIX T 60 A 30÷60 L 42x108x110 cm air 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
13,5 A
22 A
7,8 kW 60 L / Cycle
ECOMIX T 120 60÷120 L 72x78x110 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
21 A
40 A
14 kW 120 L / Cycle
ECOMIX T 200 100÷200 L 76x110x120 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
29 A
53 A
19 kW 200 L / Cycle
