Combined Vertical Freezers

Pastogel T 3-6
Pastogel T 4-8 /4-8A

COMBINED PROFESSIONAL MACHINES
1 CYLINDER TO MIX, COOK, PASTEURIZE
AND FREEZE ANY MIXTURE

Loading...

Pastogel T 3-6
Pastogel T 4-8 /4-8A

COMBINED PROFESSIONAL MACHINES
1 CYLINDER TO MIX, COOK, PASTEURIZE
AND FREEZE ANY MIXTURE

Top level multi-function batch freezers for the preparation of gelato, ice-cream, pastry and gastronomy products.
Banda sfondo rosso  macchine multisettoriali

Features

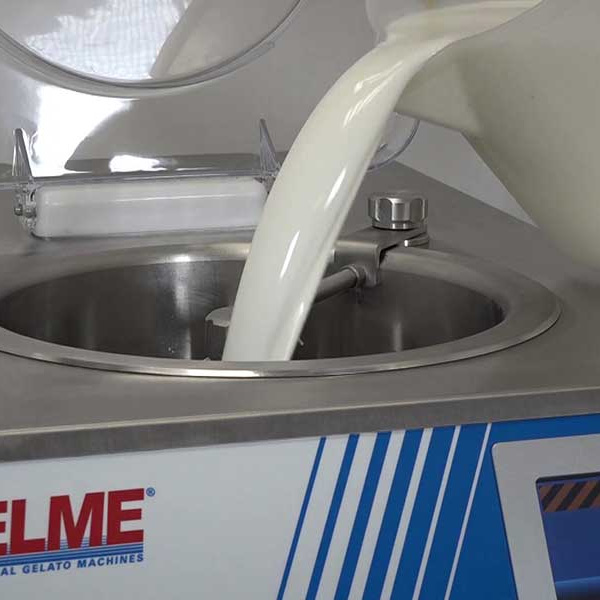

  • caratteristiche.item_01_alt Vertical cylinder, easy to fill, using the walls and bottom of the cylinder to transmit the available cooling power.

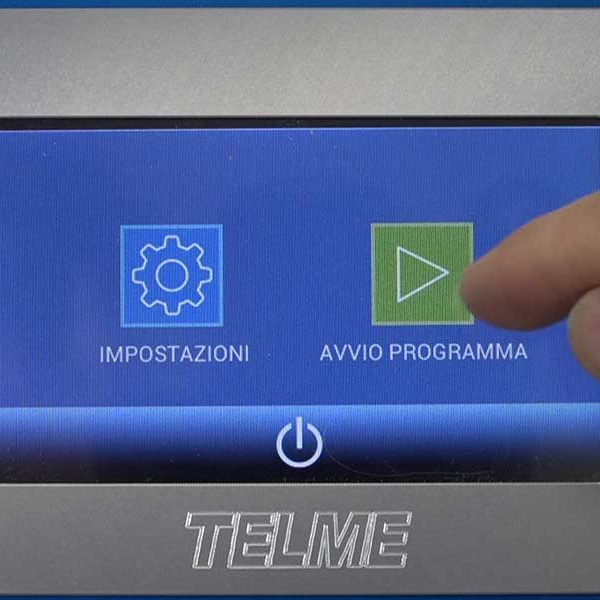

  • caratteristiche.item_02_alt Resistive 5 inch colour Touch Screen with 18 preset cycles: 9 for Gelato, 7 for pastry, 2 for gastronomy and programmable cycles in series for one’s own recipes.
  • caratteristiche.item_03_alt Inverter for varying the speed of the beater motor.

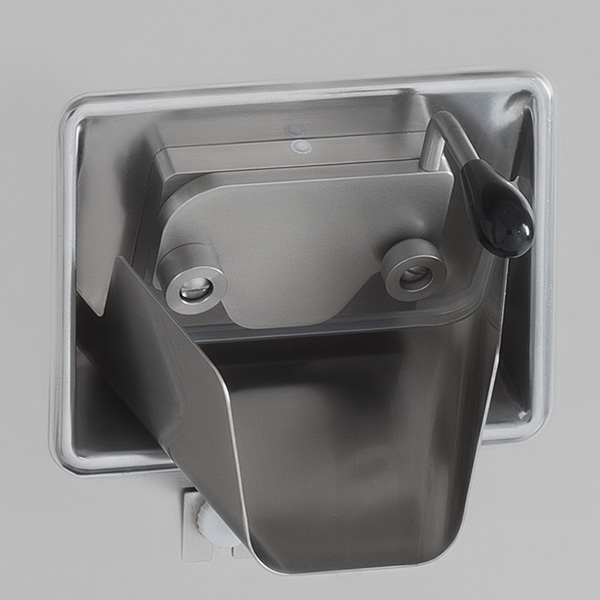

  • caratteristiche.item_04_alt Dispensing device; complying with standards, allows an optimal dispensing at the end of the cycle, ready to be served.
Banda sfondo rosso  macchine multisettoriali

Main functions

Professional Vertical combined machines hot and cold Pastogel T - Riscaldamento indiretto

Provide indirect heating by a food safe heat-conducting liquid to protect the organoleptic properties of the ingredients. Heats, sanitizes and cooks:: melts fats and chocolate, hydrates the solid parts, eliminates most pathogenic bacterial flora.

Professional Vertical combined machines hot and cold Pastogel T - Riscaldano e Sanificano

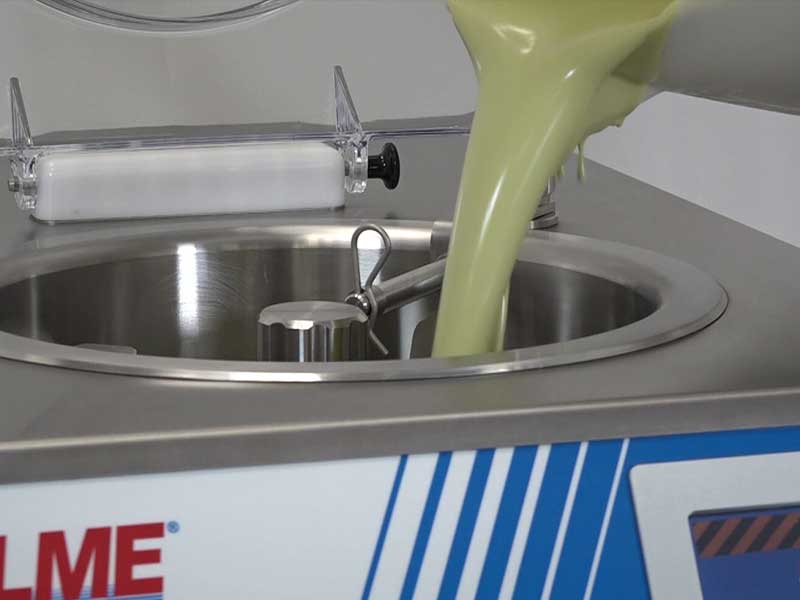

Cools and finalizes the pasteurization process. Freeze the mix, incorporating air in the product: ice cream, gelato, sorbetto. The mechanical and thermal treatment produce fine, creamy gelato.

Professional Vertical combined machines hot and cold Pastogel T- Raffreddano

Mix, blend, heat, sanitize, cool, freeze and dispense. Slow, fast or intermittent stirring speed according to the specific product processed.

Professional Vertical combined machines hot and cold Pastogel T- Pasteurization and freezing

Pasteurization and freezing are performed in a single cylinder, avoiding any handling or transfer and so guaranteeing maximum hygiene. A complete production laboratory in a single machine.

Professional Vertical combined machines hot and cold Pastogel T - Versatile and fast

Versatile and fast for any product requiring hot/cold thermal treatment.

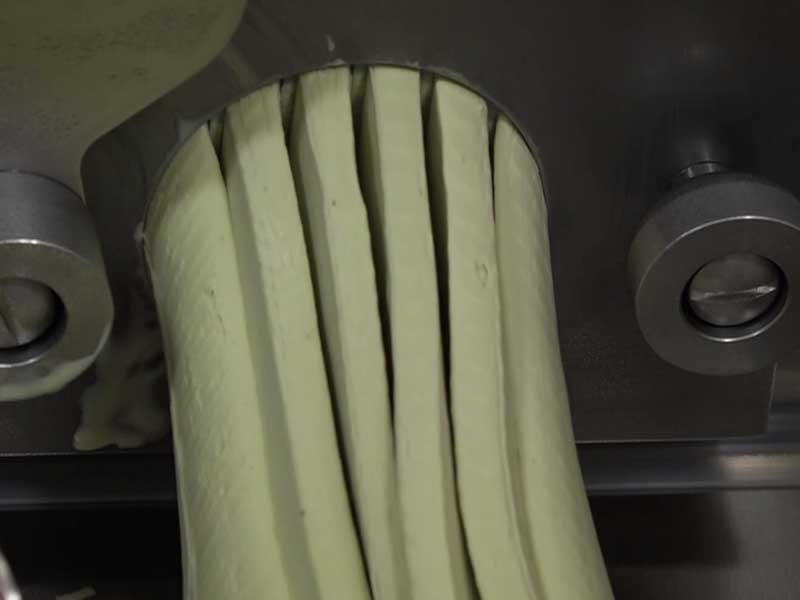

Professional Vertical combined machines hot and cold Pastogel T- Complete discharge of gelato

Complete discharge of gelato, sorbetto or ice-cream with the best structure, consistency and ready for immediate sale.

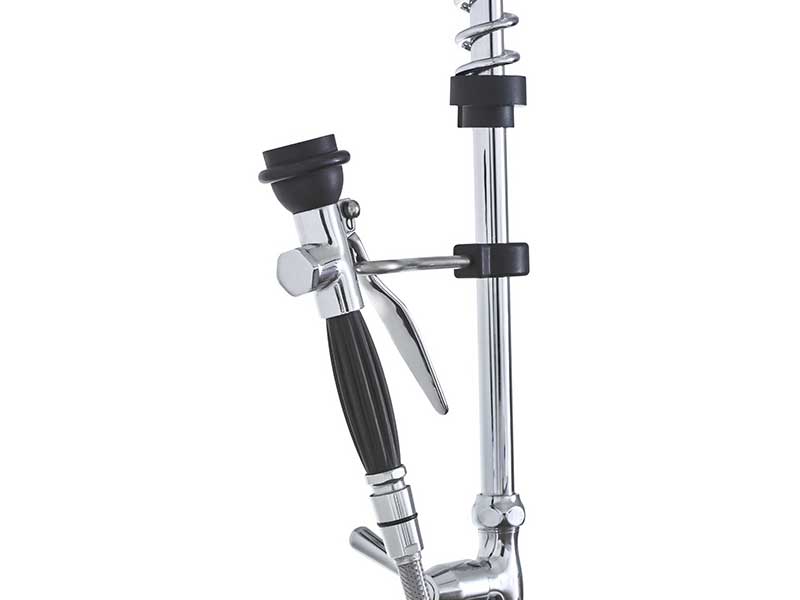

Professional Vertical combined machines hot and cold Pastogel T- Optional washing unit

Optional washing unit allows various types of uses: guide the water jet and establish the correct flow; clean more than one machine at a time; mix hot and cold water.

Professional Vertical combined machines hot and cold Pastogel T- Self-diagnosis

Self-diagnosis, to help the technical assistance.

Primary use

Pastry

  • Cream ( custard cream, English cream, butter cream, zabaione, etc.)
  • Dough (choux paste, hazelnut cookies, etc.)
  • Fruit processing (toppings, sauces, ripple sauces, icing, jams, jellies, etc.)
  • Base mix (meringues, pâte à bombe)
  • Icing
  • Ganache – Bavarian cream, panna cotta, crème caramel,etc.

Secondary use

Gelato & Ice cream

  • Pasteurizing
  • Gelato
  • Sorbetto
  • Icecream (own production)
  • Slush

Secondary use

Gastronomy

  • Bechamel, Sauces, Polenta, Ricotta, Mascarpone, Mayonnaise, Veloute, Fillings, mashed potatoes …ecc.
Banda sfondo rosso  macchine multisettoriali

Technical Data

Model MIX FOR CYCLE DIMENSIONS COOLING V / Hz / Ph A kW PRODUCTION
PASTOGEL T 3-6 3,5÷7 kg 49x70x115 cm water / air 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
8 A
15 A
5 kW 10÷35 L / h
PASTOGEL T 4-8 4,5÷9 kg 51x70x115 cm water 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
13 A
21 A
6,7 kW 20÷60 L / h
PASTOGEL T 4-8 A 4,5÷9 kg 51x95x115 cm air 400 V / 50 Hz / 3 Ph
220 V / 60 Hz / 3 Ph
14 A
22 A
7 kW 20÷60 L / h
